EKG The Electrical Map
Reading the Heart’s Electrical Story
When Seconds Matter
Chest pain. Sudden collapse. A heart that feels like it is racing or skipping.
Within minutes, we place stickers on the chest and press a button. Why so quickly? Because when something is wrong with the heart, electricity changes first. An EKG also known as an ECG is often the fastest way to detect danger. It does not show blocked arteries or blood flow. It shows the electrical signal that tells the heart muscle when to contract. In emergency medicine, that signal can reveal trouble before other tests do.
What Does an EKG Actually Measure?
Your heart runs on electricity. Tiny shifts in sodium, potassium, and calcium inside heart cells create electrical currents. Those currents travel in a precise sequence. That sequence causes the chambers to squeeze in a coordinated way.
A standard emergency EKG is a 12-lead test. Ten stickers placed on the body generate twelve electrical views. Think of it as looking at the same event from different camera angles. If one region of the heart is struggling, the leads that face that region often reflect it. This is physics translated into waves.

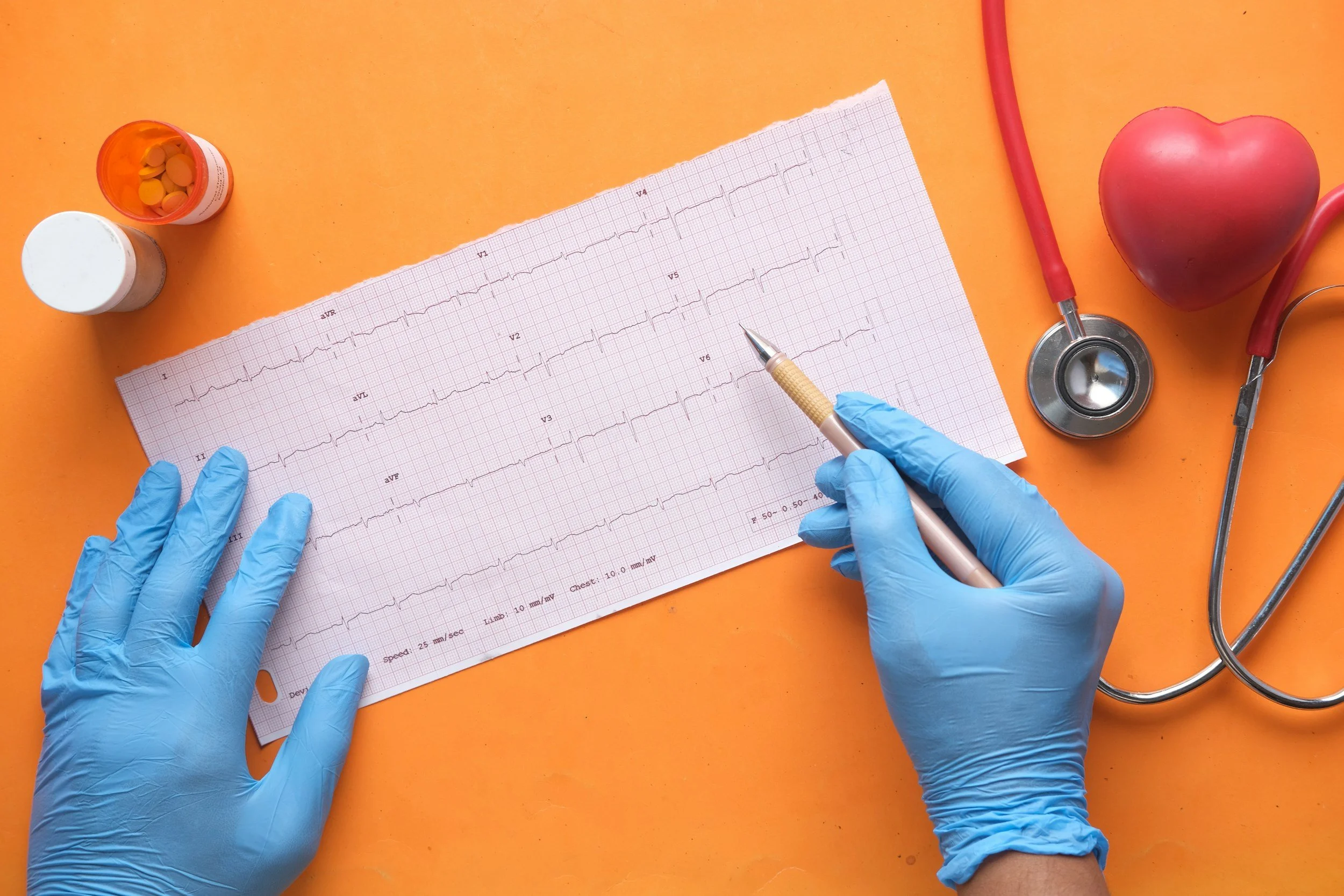

What Are We Looking For on the Tracing?
Every heartbeat creates a pattern labeled P, Q, R, S, and T. Each letter represents a different phase of electrical activation. But reading an EKG is not about memorizing letters. It is about asking structured questions.
How fast is the heart beating?
Is the rhythm regular or chaotic?
Are electrical impulses traveling normally between chambers?
Is the overall direction of current appropriate?
Are there signs of acute injury?
In a patient with chest pain, we focus closely on the ST segment. Certain elevations in that segment can signal an acute heart attack that requires immediate action. Other patterns, such as ST depression or T-wave inversion, may suggest reduced blood flow without full muscle damage. Some serious conditions produce only subtle changes. That is why interpretation requires both pattern recognition and clinical judgment.
Can an EKG Diagnose a Heart Attack?
Sometimes, yes. A specific pattern called ST elevation myocardial infarction signals that a portion of the heart muscle is losing blood flow right now. That pattern can trigger an immediate trip to the cardiac catheterization lab.
But not all heart attacks show dramatic changes. Some appear subtle. Some appear normal early on. That is why we combine the EKG with blood tests such as troponin and with the overall clinical picture. The EKG can diagnose certain heart attacks in minutes. It cannot rule them all out by itself.
What Else Can It Detect?
An EKG does far more than diagnose heart attacks. It can identify atrial fibrillation, a common irregular rhythm that increases stroke risk. It can detect dangerous ventricular rhythms that require urgent treatment. It can reveal heart block, where electrical signals fail to travel properly.
Electrolyte disturbances, especially high potassium, can dramatically alter the tracing. Certain medications can lengthen electrical intervals and increase the risk of dangerous arrhythmias. One tracing. Many clues.
Why Does QRS Width Matter?
The heart has four chambers. Two atria on top. Two ventricles below. When electrical signals travel normally through the atria into the ventricles, the QRS complex appears narrow. When signals originate abnormally within the ventricles, the complex widens.
This distinction helps us determine where a rhythm is coming from and how dangerous it may be. Some wide complex rhythms are life threatening. Some narrow complex rhythms are uncomfortable but less dangerous. This is pattern recognition grounded in physiology.
What an EKG Cannot Do
An EKG cannot directly visualize blocked arteries. A normal tracing does not guarantee a healthy heart. It does not replace imaging or blood tests. It is one powerful piece of a larger evaluation.The value lies not only in obtaining the tracing, but in interpreting it correctly.
Frequently Asked Questions
-
An EKG shows the electrical activity of the heart, including heart rate, rhythm, and signs of injury.
-
Yes. Certain EKG patterns can signal an acute heart attack that requires immediate treatment.
-
A normal EKG is helpful but does not completely rule out heart disease. It must be interpreted alongside symptoms and other tests.
THE BOTTOM LINE
• An EKG records the heart’s electrical activity from multiple angles
• It helps diagnose heart attacks, rhythm disorders, and electrolyte problems
• It is fast and powerful, but always interpreted in clinical context
Written by a Board-Certified Emergency Medicine Physician
